LESA| Products| Spiral Turbines

OUR PRODUCTS

Explore Our Futuristic Energy Solutions, The Archimedes Wind Turbine.

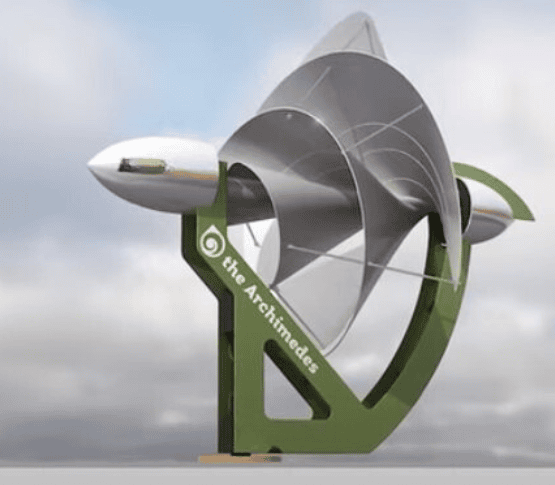

Archimedes Wind Turbine

The wind turbine has a unique and recognisable design. They are designed to be highly efficient, very silent, safe and carefree. Both sizes are designed with the same features, only the output is different. The turbine almost acts like a weather vane. It needs no hardware or software to face the optimal wind direction. For emergency or maintenance purposes, an electric brake is installed at the back. The performance remains the same even with dirt, snow or rain.

Download Brochure

Turbine Catalog

AWM-750D

AWM-1000D

AWM-1500D

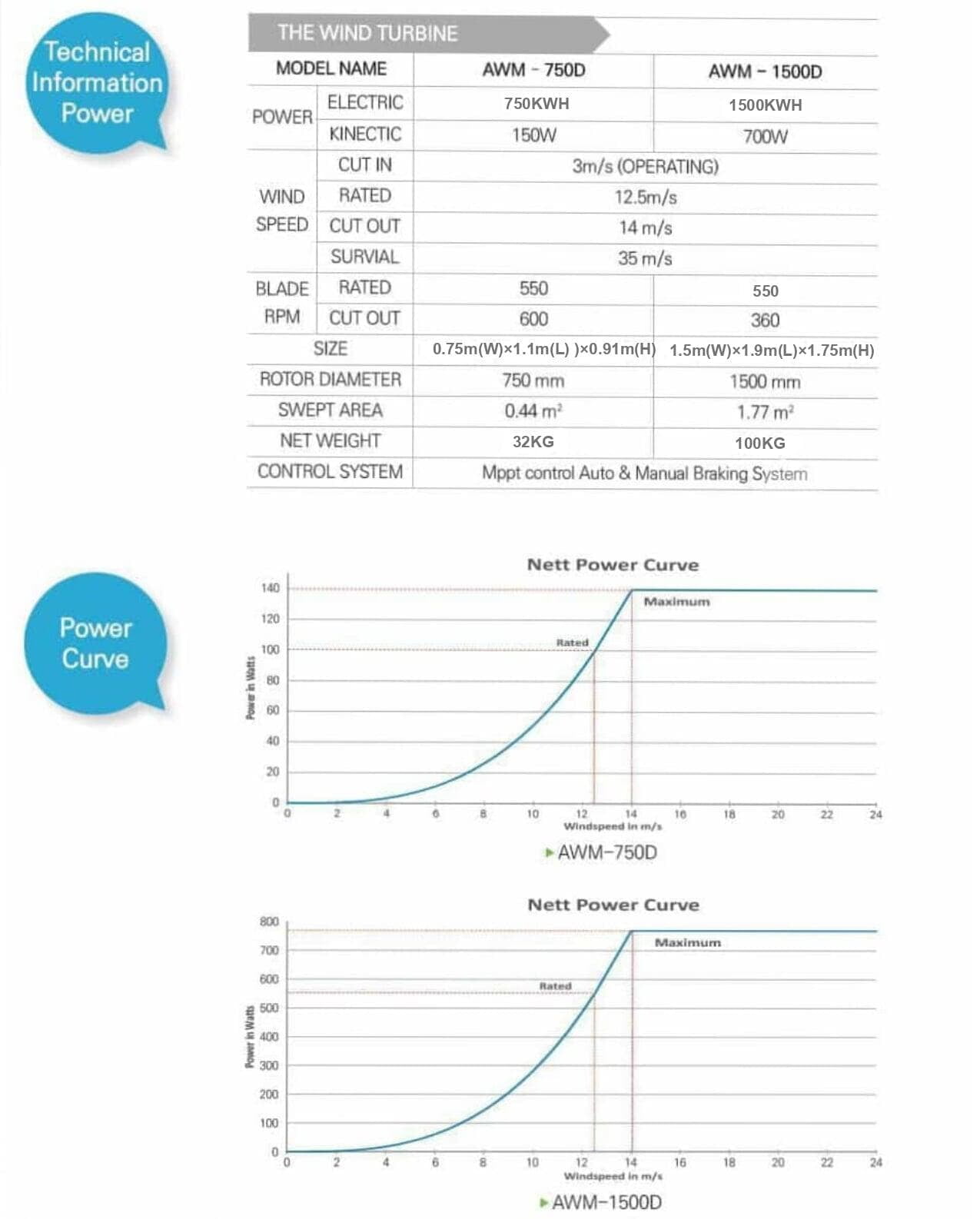

Model Specifications

Brand name: Archimedes Wind Turbine

Brake System: Electric Brake

Blade Material: Fiberglass Reinforced Plastic

Maximum operation Temp: 60°C

Minimum operation Temp: -25°C

Life Time: 15years

Warranty: 2 years Warranty

Yawing System: Yes

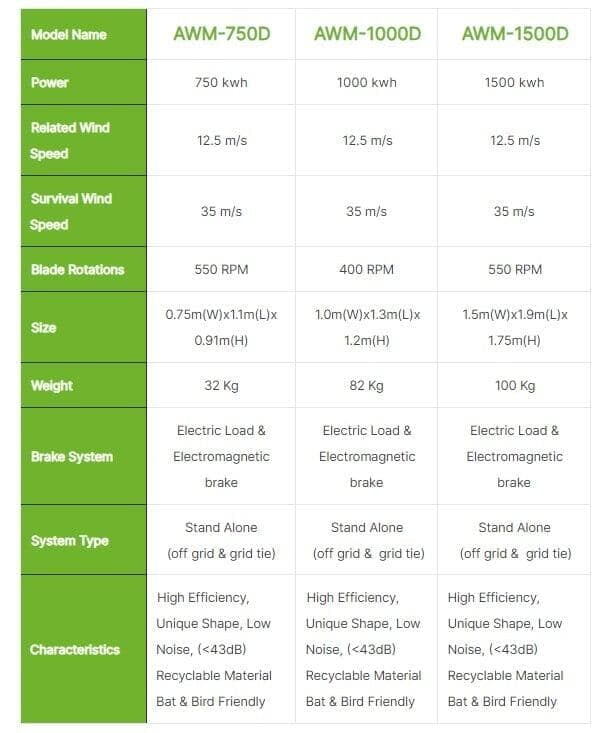

Model Name	AWM-750D	AWM-1000D	AWM-1500D
Power	750 kwh	1000 kwh	1500 kwh
Related Wind Speed	12.5 m/s	12.5 m/s	12.5 m/s
Survival Wind Speed	35 m/s	35 m/s	35 m/s
Blade Rotations	550 RPM	400 RPM	550 RPM
Size	0.75m(W)x1.1m(L)x 0.91m(H)	1.0m(W)x1.3m(L)x 1.2m(H)	1.5m(W)x1.9m(L)x 1.75m(H)
Weight	32 Kg	82 Kg	100 Kg
Brake System	Electric Load & Electromagnetic brake	Electric Load & Electromagnetic brake	Electric Load & Electromagnetic brake
System Type	Stand Alone (off grid & grid tie)	Stand Alone (off grid & grid tie)	Stand Alone (off grid & grid tie)
Characteristics	High Efficiency, Unique Shape, Low Noise, (<43dB) Recyclable Material Bat & Bird Friendly	High Efficiency, Unique Shape, Low Noise, (<43dB) Recyclable Material Bat & Bird Friendly	High Efficiency, Unique Shape, Low Noise, (<43dB) Recyclable Material Bat & Bird Friendly

Product Features

Compact and Easy to Access

Our wind turbine's sleek design seamlessly fits into any environment, urban or rural, without the hassle of complex installations offering a straightforward solution for your renewable energy needs.

Safety First

Our commitment to safety is unwavering. Laawun turbines are built with advanced safety features, ensuring a secure and reliable energy solution for your home or business.

Low Noise

Experience the power of the wind without the disturbance. Our turbines are engineered for minimal noise, allowing you to harness wind energy without disrupting the tranquillity of surroundings.

Bat and Bird Friendly

Our turbines are designed with a focus on being bat and bird friendly, ensuring harmony between green energy production and biodiversity conservation.

Product Features

Compact and Easy to Access

Our wind turbine's sleek design seamlessly fits into any environment, urban or rural, without the hassle of complex installations offering a straightforward solution for your renewable energy needs.

Low Noise

Experience the power of the wind without the disturbance. Our turbines are engineered for minimal noise, allowing you to harness wind energy without disrupting the tranquillity of surroundings.

Safety First

Our commitment to safety is unwavering. Laawun turbines are built with advanced safety features, ensuring secured reliable energy solution for your home or business.

Bat and Bird Friendly

Our turbines are designed with a focus on being bat and bird friendly, ensuring harmony between green energy production and biodiversity conservation.

Our Add-On Products
for Archimedes Wind Turbines

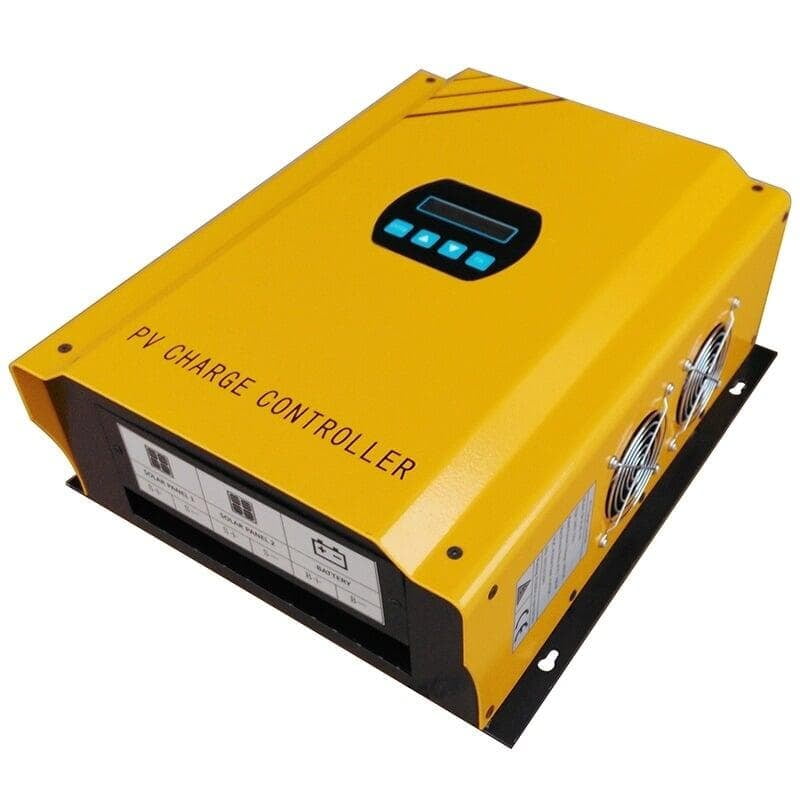

Professional wind and solar hybrid controller

Our Professional Wind and Solar Hybrid Controller serves as a crucial component in renewable energy systems, seamlessly integrating both wind and solar power sources to optimise energy production. This advanced controller efficiently manages the charging and discharging of batteries in off-grid or hybrid power systems, ensuring a stable and reliable energy supply.

Download Manual

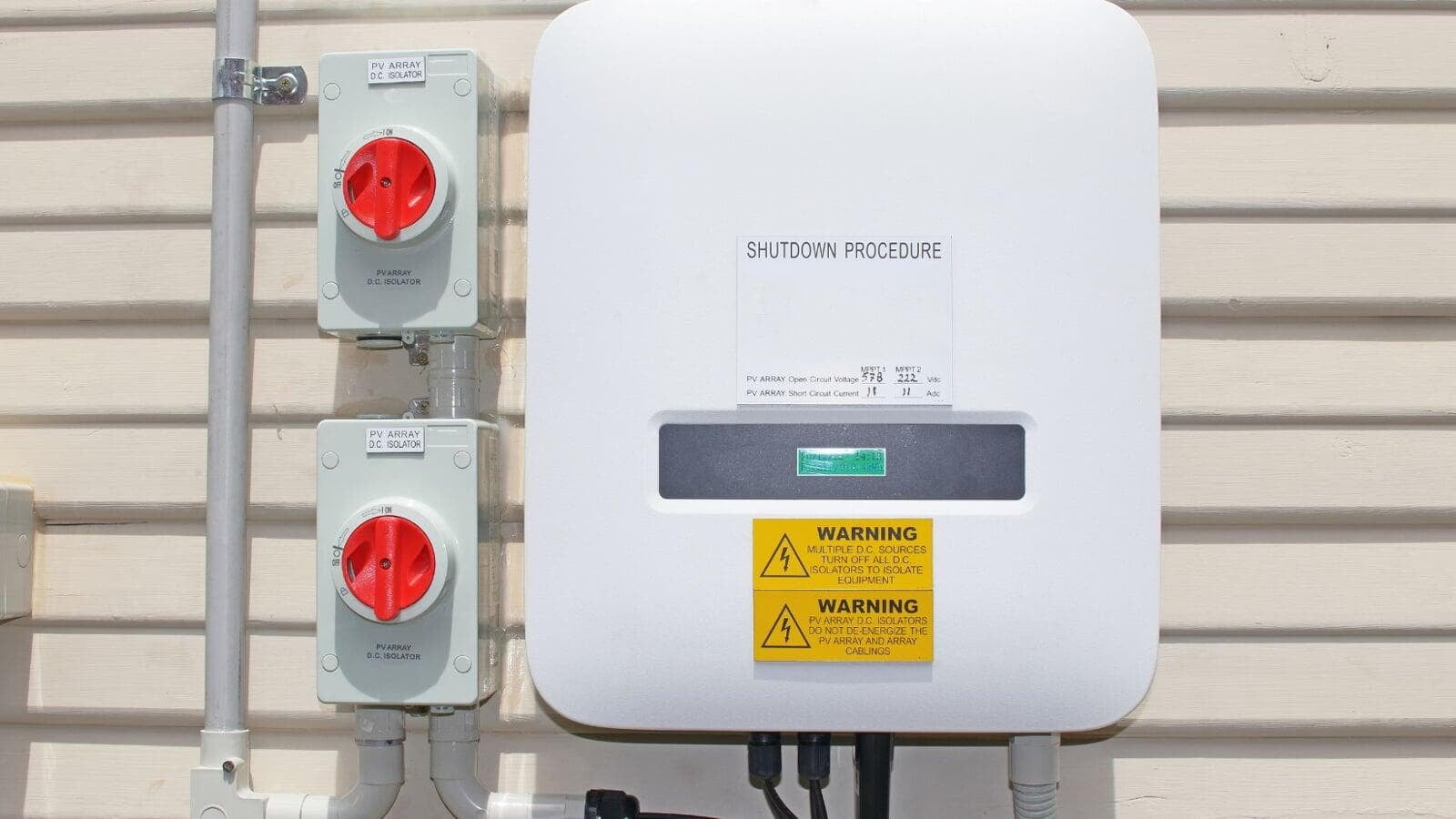

Professional ON-Grid Brake Inverter

Our Professional On-Grid Brake Inverter is a ideal solution for connecting small wind turbines to the grid. It ensures safety with galvanic isolation, mains monitoring, and an intelligent brake system. The device meets European standards and comes with clear installation and safety instructions for optimal performance.

Download Manual

How It Works?

The spiral small wind turbine operates seamlessly across diverse weather conditions and environments. Its innovative design, inspired by Archimede's spiral geometry, sets it apart from conventional wind turbines. This unique structure ensures the turbine's efficiency and functionality. This feature is particularly advantageous for installations near urban centers, enhancing its suitability for diverse environments such as cities, parks, mountains, and more.
